Cutting a fire hole in a furnace is an important fabrication process used when creating an opening for fuel feeding, inspection, airflow, or access to the combustion chamber. The opening must be accurately positioned and properly reinforced so the furnace structure remains stable and can safely withstand high operating temperatures. The following step-by-step process describes the general fabrication procedure.
Step 1: Prepare the Furnace Design
Begin by reviewing the furnace drawing and identifying the exact location, size, and purpose of the fire hole. Determine whether the opening will be used for fuel loading, burner installation, inspection, or another function. Mark the required dimensions clearly before cutting.
Step 2: Inspect the Furnace Surface
Examine the furnace wall or metal plate where the opening will be created. Check for cracks, corrosion, damaged refractory material, existing pipes, electrical components, or structural supports. Ensure that the selected location is suitable for modification.
Step 3: Mark the Cutting Area
Use a measuring tape, square, template, or marking tool to draw the outline of the fire hole. Depending on the design, the opening may be square, rectangular, circular, or another shape. Double-check all measurements before cutting to prevent unnecessary material removal.
Step 4: Prepare the Cutting Equipment
Select an appropriate industrial cutting method for the furnace material and thickness. This may include mechanical cutting, plasma cutting, or another approved fabrication process. Inspect the equipment and confirm that the required guards, ventilation, and safety systems are functioning correctly.
Step 5: Remove Surrounding Components
Before cutting, remove or protect nearby components that could be damaged by heat, sparks, dust, or vibration. If refractory lining is present, carefully remove the required section using appropriate tools. Keep the work area clear and properly controlled.
Step 6: Make the Initial Opening
Create a starting point or pilot opening when required by the selected cutting method. Begin the cut gradually and follow the marked outline. Maintain accurate control of the cutting tool to prevent the opening from becoming oversized or uneven.

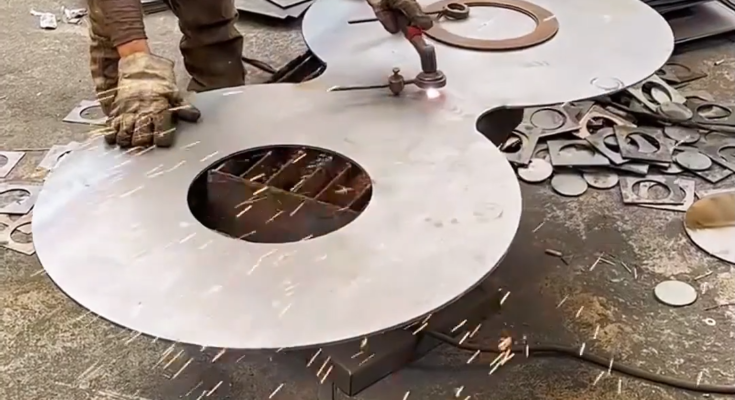

Step 7: Complete the Fire Hole Cut
Continue cutting around the marked shape until the unwanted section can be safely removed. Support large cut pieces to prevent sudden movement or damage. Allow hot material to cool before handling it.
Step 8: Trim and Prepare the Edges
Inspect the newly cut opening for rough edges, burrs, sharp sections, or irregular areas. Use suitable finishing equipment to smooth the metal edges and bring the opening to the required dimensions. Check the shape using the appropriate measuring tools.
Step 9: Install Reinforcement or a Frame
Depending on the furnace design, install a suitable heat-resistant frame, collar, or reinforcing structure around the fire hole. The frame should support the opening and provide a stable mounting surface for a door, burner component, or access cover. Any materials used must be compatible with the furnace’s operating conditions.
Step 10: Restore Insulation and Inspect
Repair or replace refractory lining and insulation around the new opening as required by the furnace design. Inspect all surrounding areas for cracks, gaps, loose material, or damage caused during cutting. Install the required fire door, cover, or related component and verify proper alignment.
Finally, the modified furnace should be inspected and tested according to applicable engineering, manufacturer, and safety requirements before returning it to service. Because furnace modifications involve high temperatures, fire hazards, structural concerns, and potentially hazardous gases, this work should be performed by qualified personnel using an approved design and proper industrial safety procedures.
